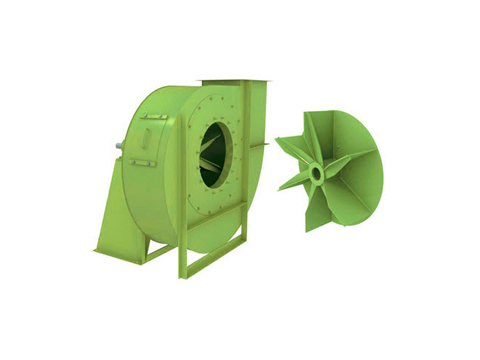

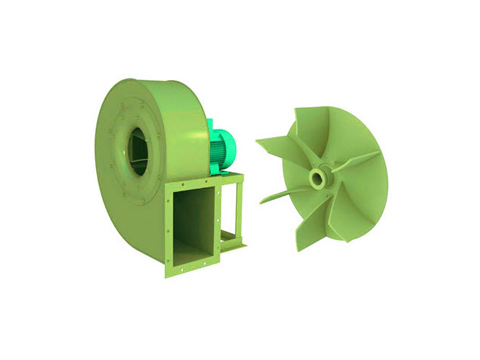

OPEN BLADE : Direct drive, Belt drive

Spark proof construction: when explosive fluids are carried or when the plant is installed in dangerous environments, the parts that come into contact with the in taken fluid are constructed by material without iron content to avoid rubbing, motor on request is supplied in special construction.

Corrosion proofing construction: when corrosive fluids are carried, the parts that come into contact with the fluid are painted with special paints or they are constructed with special materials as austenitic stainless steels (AISI 304-316 etc.). Constructions can be effected according to the customer’s particular needs.

Technical Data

• Drive: Direct, Belt
• St. Pressure: 185.00-322.00 mmH2O
• Impeller Dia: 630.00-900.00 mm.
• Air Volume: 45.00-315.00 cmm.

USAGE:

• For the suction of very dusty air containing various types of materials in suspension. These types of fans are mainly used in the following industries:
• joinery works (for the transport of saw dust and wooden shavings). tanneries (for the transport of trimmings and skin shavings). industries for plastic articles (for the transport of granulates). The temperature of the fluid sucked in must not exceed 80°C.
