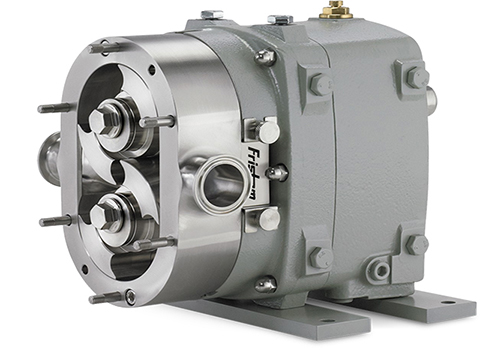

Stop rebuilding, replacing, and spending your valuable time on other PD pumps. Fristam’s FKL pump simply runs better and lasts longer. Engineered for lasting performance, its large diameter shaft is stronger than others. The FKL’s shaft and unique balanced rotor design reduce rotor-to-housing contact that can prematurely wear your pump. In fact, the shaft is guaranteed for life never to break.

The FKL is the first close-clearance sanitary PD pump to be designed for “True CIP.” Fristam’s FKL needs nothing removed from the pump for CIP. The cover and rotors remain in place. This provides a simple and effective solution with minimal downtime and no performance loss. The FKL’s port-to-port dimensions can be customized for easy replacement of other PD pumps, so make the change.

FKL Model Specifications

• Max Flow Rate: 15.5 gpm (58.7 lpm)
• Max Speed: 1000 rpm
• Max Discharge Pressure: 200 psi (14 bar)
• Fitting (Housing/ Seal Flush Thread): 1.5" clamp, 1/16" NPT
• Weight: 75 lbs (34 kg)
• Options: O-Ring Seal
