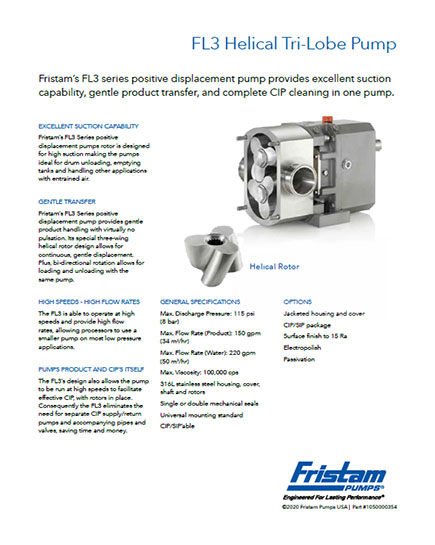

Fristam’s FL3 series positive displacement pump provides excellent suction capability, gentle product transfer, and complete CIP cleaning in one pump. Fristam’s FL3 pumps feature unique helix-shaped tri-wing rotary lobes, providing increased suction capabilities and virtually eliminating pulsation and reducing noise. They ensure an almost perfectly steady product stream, with exceptionally gentle treatment of your product. The rotor design allows the pump to be run at higher RPM to accommodate higher flow cleaning of the system (CIP).

The suction capabilities and low pulsation of the Fristam FL3 positive displacement pump have proved ideal in a wide range of applications.

Applications of FL 3

• Sour cream
• Orange juice concentrate
• Soft cheese
• Cognac
• Sparkling wine
• Liquid sugar
• Cheese curd
• Butter oil
• Glucose syrup
• Body milk
• Fruit
• Cream

FL 3 Model Specifications

• Gallons per Revolution (Liters): 0.045 (0.17)
• Maximum Revolution Speed (Product): 700 rpm
• Maximum Revolution Speed (Water): 1,200 rpm
• Maximum Discharge Flow (Product): 17 gpm (3.86 m3/h)
• Maximum Discharge Flow (Water): 35 gpm (8 m3/h)
• Maximum Discharge Pressure: 87 psi (6 bar)
• Fitting Size: 1.5"
