High pressure demands can be fulfilled with a compact pump design (less stages) by operating at over-synchronous speed. Factory configured CRE's with reinforced chambers and impellers can be an option. The motor size must be adjusted accordingly.
Flow demand can change fast with large variations. Ramp and control trim can take stress fromthe pumps. Standstill motor heaters are recommended for very cold ambient temperatures to reduce condensation. Drain holes might also need to be opened.
-
1.Vertical multistage pumps - CR/CRE
Flow max.: 336 m³/h Head max.: 487 m Liquid temperature: -40..150 °C p max.: 40 bar -
2.Endsuction close coupled multistage pumps - CM/CME
Flow max.: 36 m³/h Head max.: 132 m Liquid temperature: -20..120 °C p max.: 16 bar -
3.Endsuction close coupled single-stage pumps - NBG/NBGE
Flow max.: 4184 m³/h Head max.: 230 m Liquid temperature: -25..140 °C p max.: 25 bar -
4.Endsuction close coupled single-stage pumps - NB/NBE
Flow max.: 1401 m³/h Head max.: 177 m Liquid temperature: -25..120 °C p max.: 16 bar -
5.Endsuction close coupled single-stage pumps - MTB/MTBE
Flow max.: 90 m³/h Head max.: 48 m Liquid temperature: 0..90 °C p max.: 16 bar -
6.Horizontal multistage pumps - BMS
Flow max.: 343 m³/h Head max.: 1053 m Liquid temperature: 0..40 °C -
7.Immersible Pumps - MTR/MTRE
Flow max.: 87 m³/h Head max.: 371 m Liquid temperature: -10..90 °C p max.: 38 bar -
8.Digital Dosing Pumps - SMART Digital S/XL
Flow max.: 200 l/h Liquid temperature: -10..50 °C p max.: 16 bar

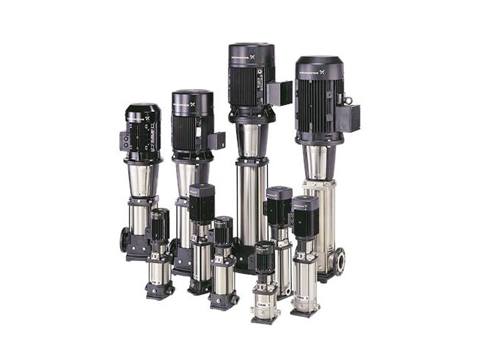

1. Vertical multistage pumps - CR/CRE
Vertical, multistage centrifugal pump with suction and
discharge ports on the same level.

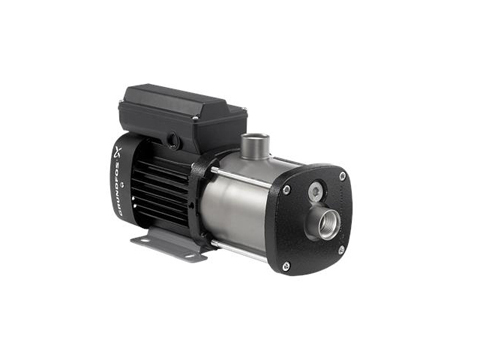

2. Endsuction close coupled multistage pumps - CM/CME
CM, CME are reliable, quiet and compact horizontal
end-suction pumps. The modular pump design makes it
easy to make customised solutions.
3. Endsuction close coupled single-stage pumps - NBG/NBGE
Close-coupled pumps according to ISO 2858. Flanges are PN
16 with dimensions according to AS2129 table E. The pump
has an axial suction port, radial discharge port, horizontal
shaft and a back pull-out design enabling removal of the
motor, motor stool, cover and impeller without disturbing
the pump housing or pipework.
4. Endsuction close coupled single-stage pumps - NB/NBE
End-suction close-coupled pumps according to EN 733. The
pump has an axial suction port, radial discharge port,
horizontal shaft and a back pull-out design enabling
removal of the motor, motor stool, cover and impeller
without disturbing the pump housing or pipework.
5. Endsuction close coupled single-stage pumps - MTB/MTBE
Close coupled end-suction pump with semi-open vortex
impeller. The pumps are designed specifically for the
transfer of liquids containing solid particles in industrial
machine tool applications.

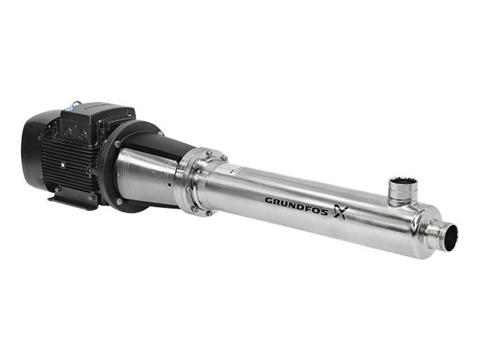

6. Horizontal multistage pumps - BMS
The Grundfos BMS range consists of hp (high pressure) and
hs (high speed) versions. BMS hp are suitable for industrial
and water supply applications where the inlet pressure is
high. BMS hs enables the creation of high pressure.
7. Immersible Pumps - MTR/MTRE
Vertical multistage centrifugal pump designed for tank top
mounting and for pumping of cooling lubricants and
cutting oils for machine tools, cooling applications,
industrial liquid transfer and similar applications.
8. Digital Dosing Pumps - SMART Digital S/XL
SMART Digital diaphragm dosing pump with powerful
variable-speed stepper motor (S) or powerful PMS
(Permanent Magnet Synchronous) motor (XL) and
FlowControl system to automatically detect malfunctions.
High-end solution for complex and demanding applications
with turn-down ratio up to 1:3000.
-
