Heat Distribution
For high temperatures the shaft seals can be protected with air-cooled top.
The MAGNA3 features a built-in heat energy meter that can monitor system heat energy distribution and consumption to reduce high energy demand caused by system imbalances.
-
1.Inline single-stage pumps - TP/TPE, TPD/TPED
Flow max.: 4374 m³/h Head max.: 139 m Liquid temperature: -40..150 °C p max.: 25 bar -
2.Circulator pumps - MAGNA
Flow max.: 81 m³/h Head max.: 19 m Liquid temperature: -10..110 °C p max.: 16 bar -
3.Circulator pumps - ALPHA
Flow max.: 4 m³/h Head max.: 8 m Liquid temperature: 0..110 °C p max.: 10 bar -
4.Booster Systems - Hydro MPC, Hydro Multi-E
Flow max.: 1464 m³/h Head max.: 161 m Liquid temperature: 0..60 °C p max.: 16 bar
1. Inline single-stage pumps - TP/TPE, TPD/TPED
Grundfos TP/TPE pumps are single-stage, close-coupled
in-line centrifugal pumps with mechanical shaft seal and
primely for applications such as heating/cooling/district
energy. TPD/TPDE pumps are the twin-head version.
2. Circulator pumps - MAGNA
The Grundfos MAGNA circulator pumps are designed for
heating and cooling applications in commercial buildings.
The pumps are available in both cast-iron and
stainless-steel and as twin-head variants. The pumps are
maintenance-free due to the canned-rotor type design.

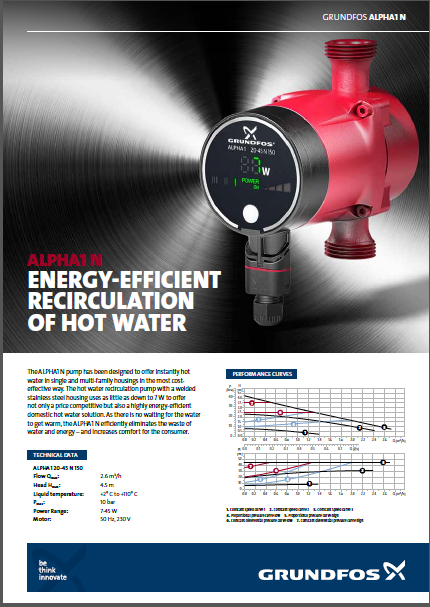

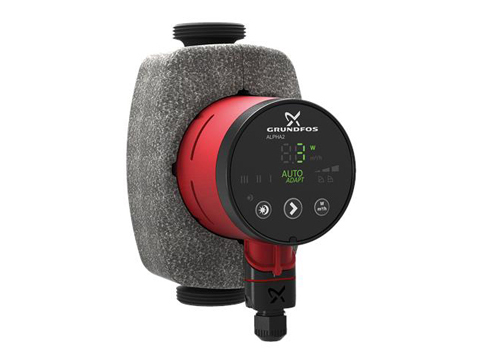

3. Circulator pumps - ALPHA
The Grundfos ALPHA pumps are high-efficiency variable
speed circulators designed for heating, air-conditioning and
also suitable for some industrial applications.
4. Booster Systems - Hydro MPC, Hydro Multi-E
Advanced and energy efficient pressure boosting system for
boosting of clean water. Available with 2 - 6 (2 - 4 for
Multi-E) parallel connected pumps, integrated advanced
controller and all necessary fittings.
-
