For installations with limited space (i.e., installation in cabinets or machine centers) high rpm versions with over-synchronous operation can be suitable and provide the required flow and head, with a more compact pump design. Leaking pumps may lead to contamination and costly downtime. MTR pumps eliminate this risk with drainage back to tank (DBT).

When multiple duty points are needed, E-pumps and sensors can speed up and slow down pumps to fulfil larger Q/H areas, and thereby replace 2 - 3 pumps or control valves with one E-pump. For global OEMs stock costs can be reduced with our IE5 E-motors providing multiple approvals and 50/60 Hz in one pump. The immersible pumps can be adjusted in length to accommodate different tank designs. The pumps are available in complete stainless-steel execution for special applications. The MTH/MTHE pumps are designed with compactness in mind increasing the ease of installation.

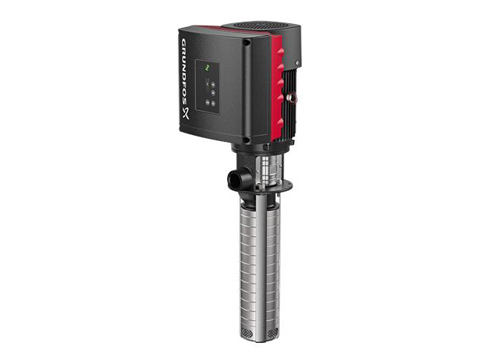

1. Immersible Pumps - MTR/MTRE
Vertical multistage centrifugal pump designed for tank top mounting and for pumping of cooling lubricants and cutting oils for machine tools, cooling applications, industrial liquid transfer and similar applications.

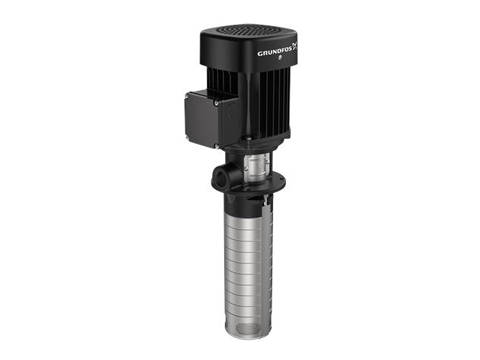

2. Immersible Pumps - SPK/SPKE
Vertical multistage centrifugal pump designed for tank top mounting and for pumping of cooling lubricants and cutting oils for machine tools, condensate transfer and similar applications.

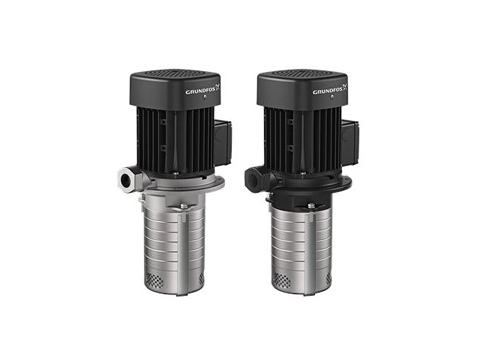

3. Immersible Pumps - MTH/MTHE
Vertical multistage centrifugal pump designed for tank top mounting and for pumping of cooling lubricants and cutting oils for machine tools, cooling applications, industrial liquid transfer and similar applications.

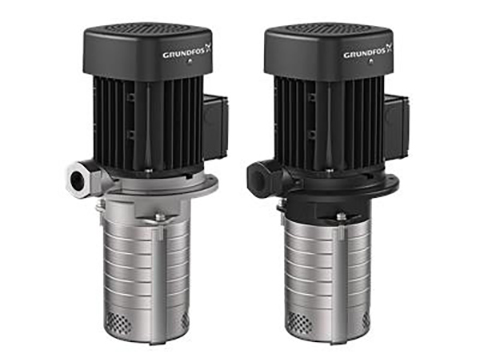

4. Immersible Pumps - MTC
Vertical multistage, immersible, self-priming, centrifugal pump for installation in tanks etc. Designed for pumping of cooling lubricants for machine tools, condensate transfer and similar applications.

5. Immersible Pumps - MTS/MTSE
Screw spindle pump designed for pumping cooling lubricants and cutting oils for machine tool applications.

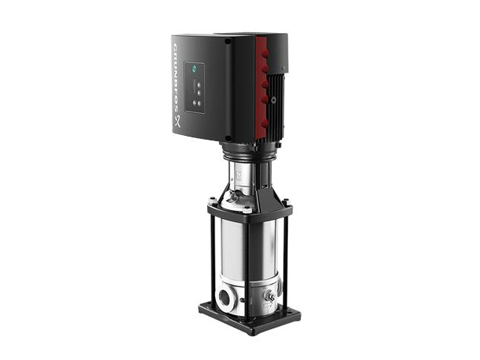

6. Vertical multistage pumps - CR/CRE
Vertical, multistage centrifugal pump with suction and discharge ports on the same level.

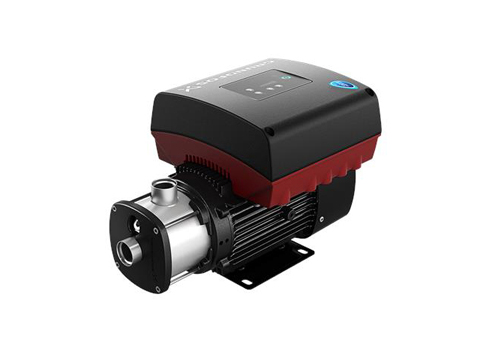

7. Endsuction close coupled multistage pumps - CM/CME
CM, CME are reliable, quiet and compact horizontal end-suction pumps. The modular pump design makes it easy to make customised solutions.

8. Endsuction close coupled single-stage pumps - NBG/NBGE
Close-coupled pumps according to ISO 2858. Flanges are PN 16 with dimensions according to AS2129 table E. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.

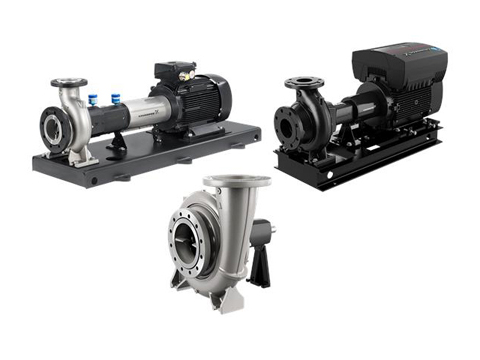

9. 64 Endsuction long coupled single-stage pumps - NKG/NKGE
Standard pumps according to ISO 2858 with axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the coupling, bearing bracket and impeller without disturbing the motor, pump housing or pipework.

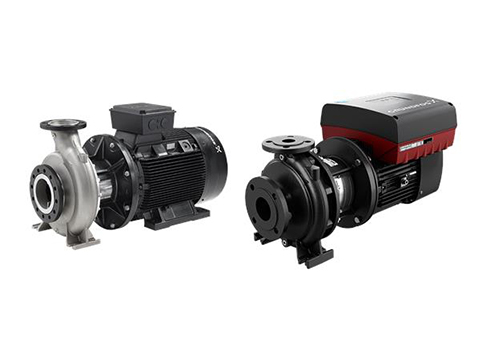

10. Endsuction close coupled single-stage pumps - NB/NBE
End-suction close-coupled pumps according to EN 733. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.

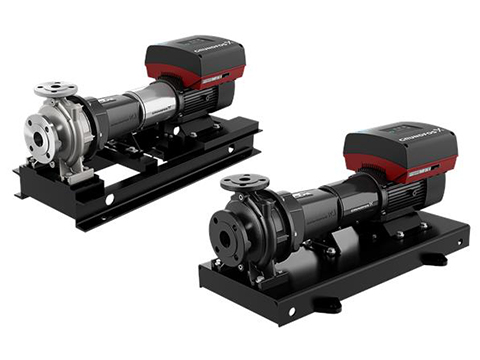

11. Endsuction long coupled single-stage pumps - NK/NKE
Standard pumps according to EN 733. The pump has an axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the coupling, bearing bracket and impeller without disturbing the motor, pump housing or pipework.
