Pump in Industrial Design

General

Universally applicable – the NEMO BY

NEMO BY Progressing Cavity Pumps can be used in any area of industry where a great variety of different substances must be pumped or very precisely dosed. From low viscosity media to products barely capable of flowing, with or without solid content, shear-sensitive, sticky or abrasive – with the NEMO BY, even difficult substances are conveyed gently and under low pulsation.

In block construction with a flanged drive, this NEMOpump is particularly compact and economical. The NEMO BY also differentiates itself by means of low investment, operating and maintenance costs. Four rotor/stator geometries are available to cover a broad spectrum of products and applications. Contact us and we will help you find the optimal solution for your particular application.

Features of the NEMO BY Progressing Cavity Pump

• continuous low-pulsation conveyance unaffected by fluctuations in pressure and viscosity
• conveyance volume in proportion to rotation speed with high dosing precision over the entire rotational-speed range
• high pressure capability without valves
• location of the mechanical seal directly under the intake port in the pumping space makes external flushing of the seal unnecessary in many applications
• short drive shaft and pump lantern offer high stability for mechanical seal installation
• separate flange bearing and pump base make it easy to change the stator

NEMO BY Progressing Cavity Pumps offer you:

• gentle product conveyance
• pump connections in accordance with national and international standards, as well as in specially designed models
• easy serviceability

Advantages of the NEMO BY Progressing Cavity Pump

• variable modular system
• various rotor/stator geometries and a large spectrum of materials
• robust and compact block construction
• the right joint for any application
• standard mechanical seal, other seals optional

Everything from a single supplier

To accommodate the various applications in your processes, it is now also possible to procure NEMOProgressing Cavity Pumps together with the well-known NETZSCH TORNADO® Industrial Rotary Lobe Pumps.

Take advantage of our decades of experience and know-how in the manufacturing of positive-displacement pumps.

Technique

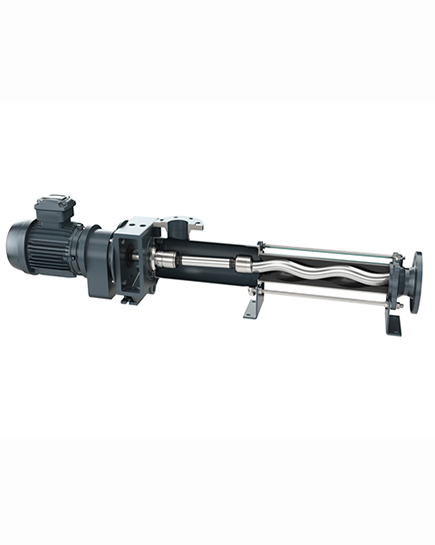

NEMO BY Block Pump in Industrial Design

1 Rotor
In wear- and corrosion-resistant designs including the wear-free ceramic rotor NEMO CERATEC®.

2 Stator
Vulcanized into the tube with sealing on both sides in a variety of elastomers, plastics and metals. Stator inlet with hopper-shaped opening for improved feed of the product into the conveying chamber.

3 Drive Chain
Coupling rod and two gimbal joints for the transmission of power from the drive to the rotor.

4 Shaft Seals
Standard with single-acting, bi-directional, wear-resistant mechanical seal. Upon request, with single- or double-acting mechanical seals of varied designs and from various manufacturers, cartridge and special seals as well as packed glands.

5 Suction and Discharge Housing
Flange and threaded connections in accordance with DIN and international standards. Materials in cast iron, steel, chrome-nickel-steel rubberized; also special materials upon request.

6 Block Construction
The drive is flanged directly to the lantern of the pump, resulting in compact dimensions, low total weight, constant axial heights irrespective of the construction type and size of the drive, and ease of maintenance and serviceability as well as high efficiency.

The NEMO BY Progressing Cavity Pump is available…

• in various sizes for flow rates up to 400 m³/h
• for differential pressures up to 24 bar
• in various materials, from steel to chrome-nickel-steel to highly acid-resistant materials such as duplex, Hastelloy and titanium with various stator elastomers, from highly abrasion-resistant natural rubber, to oil-, acid-, and alkali-resistant elastomers, to Afla
• to be customized optimally to your application
• with a variety of mechanical shaft seals and packed glands as well as special seals
• substances with consistencies from runny to pasty, with or without solid content.
• substances with consistencies from slowly flowing to non-free-flowing, with or without solid content

Applications

We have solutions for all your tasks!

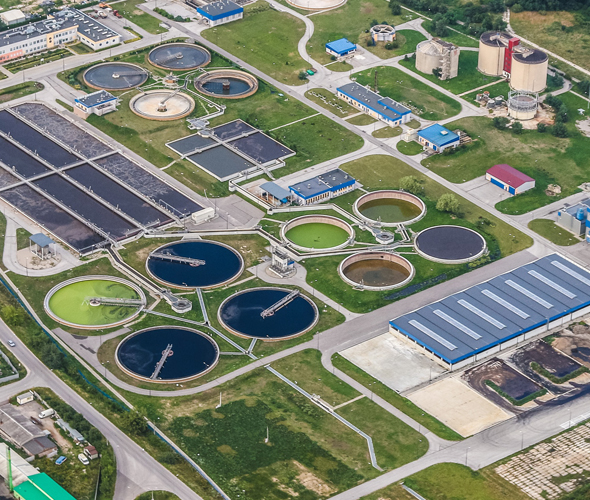

The NEMO BY in block construction is used for a great variety of pumping tasks in industries such as environmental technology, foods, chemicals, and oil. This pump type is already conveying a broad spectrum of substances in applications around the world. What sets the NEMO BY apart is its ability to convey almost any substance, with or without solid content, under low pulsation in a gentle and pressure-stable manner.

Wide Spectrum of Applications
The NEMO BY Progressing Cavity Pump is used primarily for substances with the following properties:

• consistencies from runny to pasty
• substances with solid content
• shear-sensitive
• smearing or non-smearing
• thixotropic and dilatant
• abrasive
• adhesive

Additional Features:

• low noise, low vibration
• high suction capability up to 9 mWC
• bi-directional
• vertical or horizontal installation
• temperatures from -40°C to 300°C

Large Range of Capacities and Pressures

• adjustable capacities up to 400 m³/h
• for differential pressures up to 24 bar

Accessories

The following accessories are available for NETZSCH NEMOBearing Block Pumps:

• A great assortment of shaft sealing systems planned in accordance with API 682 and seal sizes in accordance with API 610
• Systems for monitoring the conveying pressure
• Dry running protection units
• Safety valves
• Electrical control systems
• Bypass lines
• Application-specific baseplates
• A great variety of drive systems
