Dust-controlled bag dumping

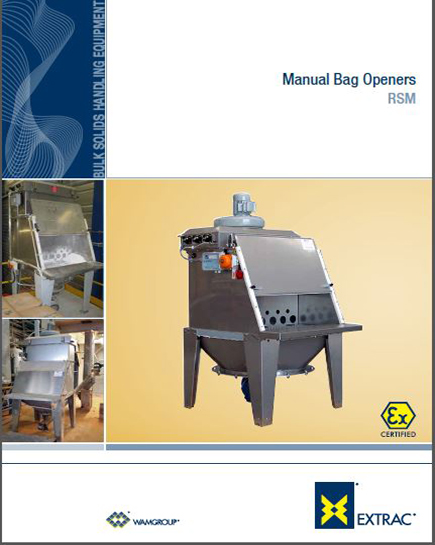

Produced in large series, the RSM Manual Bag Opener shows an industrial design as a result of in-depth assessment of user requirements in a number of industries.

The RSM Manual Bag Opener consists of a grille with a rest fitted on its front. The grille is mounted on top of a hopper which is supported by four feet. A fabricated hood with protection door fitted on its front covers the hopper and grille. RSM Bag Openers are manufactured from high-finish-grade materials and come with or without integrated de-dusting filter unit. In the version with integrated dust filter the filter elements are pneumatically cleaned by reverse air jet.

Function :

• The operator puts the bag on the rest and pushes it on to the grille. He then slits the bag open with a vertical cut and shakes it empty.
• While the bag content may be discharged through a hopper or by BINSWEEP, a special rotary discharging device, into any type of feeder, the built-in fan operated, air jet cleaned dust collector filters the dust generated during emptying.
• The empty bag is dropped into the chute on the side which leads into the optional COM Waste Bag Compactor (see COM).
• Manual RSM Bag Openers are designed to minimise material residue. They satisfy a large number of applications due to their modular component design.

Features :

• Material: carbon steel, 304 L / 316 L stainless steel
• Available with de-dusting filter or equipped for centralised dust suction
• Filter element options: cartridges, round bags, elliptical bags
• Filter surface from 3 to 22 m2 (32 to 237 sq ft)
• Collecting hoppers with different capacity volumes
• Support feet with possibility of height adjustment
• Available in ATEX version, zone 22
• Space-saving overall dimensions and compact user-oriented design
• Built-in fan-operated, air jet-cleaned, maintenance-friendly dust collector

Benefits :

• Easy and quick access to internal parts for cleaning
• Built-in fan-operated, air jet-cleaned, maintenance-friendly dust collector
• Space-saving overall dimensions and compact user-friendly design
