(DP-10) POLYPROPYLENE

Technical Data

  • Fluid Port : 3/8" NPT
  • GPM : 6 Discharge
  • Volume Per Cycle : 0.020 Gallons
  • Air Supply Pressure : 20 to 100 PSI (1.4 to 7 kgf/cm2)
  • Discharge Volume Per Cycle : 0.0085 gallons (35 cc)
  • Max. Cycles Per Minute : 379 (pumps vary)
  • Max. Size Solid : 1/32" (1mm) Max
  • Dry Suction Lift : 13.5' (pumps vary)

Dimension

  • Dimensions: 7.68" W x 7.72" H
  • Net Weight: 6.6 lbs. (3.0 kg)
  • Shipping Weight: 8.6 lbs.

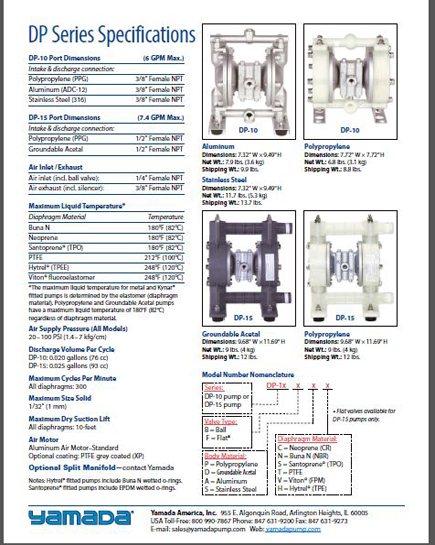

  • DP series Data sheet
