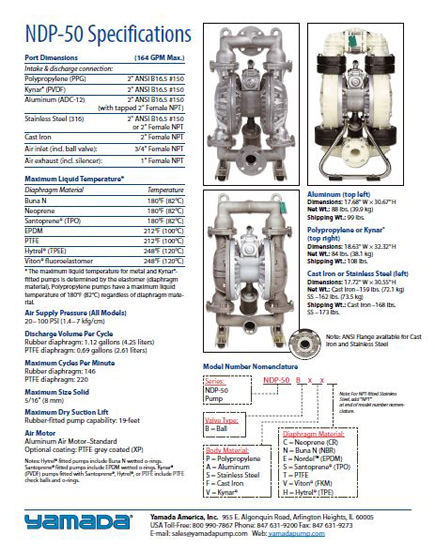

164 Gallons/Minute

2" Fluid Port

Technical Data

• Air Inlet : 3/4" Female NPT (includes ball valve)
• Air Exhaust : 1" Female NPT (includes silencer)
• Air Supply Pressure : 20 to 100 PSI (1.4 to 7 kgf/cm²)
• Discharge Volume Per Cycle : Rubber diaphragm: 1.12 gallons (4.25 liters) PTFE diaphragm: 0.69 gallons (2.61 liters)
• Maximum Cycles Per Minute Rubber diaphragm: 146 PTFE diaphragm: 220
• Maximum Size Solid : 5/16" (8 mm)
• Maximum Dry Suction Lift : Rubber-fitted pump capability: 19-feet
• Air Motor : Aluminum
• Optional Coating : PTFE-coated

Dimension

• Dimensions: 17.72" W x 30.56" H
• Net Weight: 132 lbs. (60 kg)
• Shipping Weight: 147 lbs.
