215 Gallons/Minute

3" Fluid Port

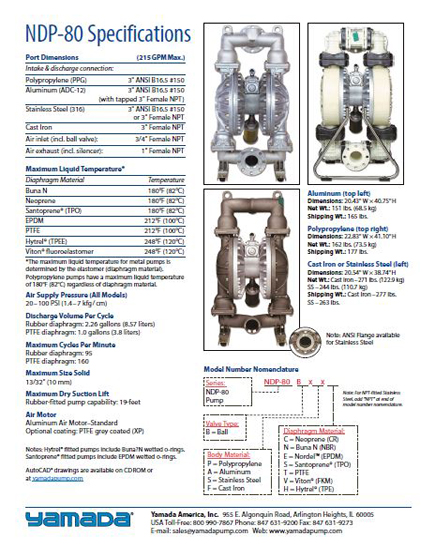

Technical Data

• Air Inlet : 3/4" Female NPT (includes ball valve)
• Air Exhaust : 1" Female NPT (includes silencer)
• Air Supply Pressure : 20 to 100 PSI (1.4 to 7 kgf/cm²)
• Discharge Volume Per Cycle : Rubber diaphragm: 2.26 gallons (8.57 liters) PTFE diaphragm: 1.0 gallons (3.8 liters)
• Maximum Cycles Per Minute : Rubber diaphragm: 95 PTFE diaphragm: 160
• Maximum Size Solid : 13/32" (10 mm)
• Maximum Dry Suction Lift : Rubber-fitted pump capability: 19-feet
• Air Motor : Standard: Aluminum
• Optional Coating : PTFE-coated

Dimension

• Dimensions: 20.51" W x 38.73" H.
• Net Weight: 247 lbs. (112 kg)
• Shipping Weight: 267 lbs
