High pressure demands can be fulfilled with a compact pump design (less stages) by operating at over-synchronous speed. Factory configured CRE's with reinforced chambers and impellers can be an option. The motor size must be adjusted accordingly.

Flow demand can change fast with large variations. Ramp and control trim can take stress fromthe pumps. Standstill motor heaters are recommended for very cold ambient temperatures to reduce condensation. Drain holes might also need to be opened.

  • 1.Vertical multistage pumps - CR/CRE

    opt_FSIP
    Flow max.: 336 m³/h Head max.: 487 m Liquid temperature: -40..150 °C p max.: 40 bar
  • 2.Endsuction close coupled multistage pumps - CM/CME

    opt_FSIP
    Flow max.: 36 m³/h Head max.: 132 m Liquid temperature: -20..120 °C p max.: 16 bar
  • 3.Endsuction close coupled single-stage pumps - NBG/NBGE

    opt_FSIP
    Flow max.: 4184 m³/h Head max.: 230 m Liquid temperature: -25..140 °C p max.: 25 bar
  • 4.Endsuction close coupled single-stage pumps - NB/NBE

    opt_FSIP
    Flow max.: 1401 m³/h Head max.: 177 m Liquid temperature: -25..120 °C p max.: 16 bar
  • 5.Endsuction close coupled single-stage pumps - MTB/MTBE

    opt_FSIP
    Flow max.: 90 m³/h Head max.: 48 m Liquid temperature: 0..90 °C p max.: 16 bar
  • 6.Horizontal multistage pumps - BMS

    opt_FSIP
    Flow max.: 343 m³/h Head max.: 1053 m Liquid temperature: 0..40 °C
  • 7.Immersible Pumps - MTR/MTRE

    opt_FSIP
    Flow max.: 87 m³/h Head max.: 371 m Liquid temperature: -10..90 °C p max.: 38 bar
  • 8.Digital Dosing Pumps - SMART Digital S/XL

    opt_FSIP
    Flow max.: 200 l/h Liquid temperature: -10..50 °C p max.: 16 bar
  • 9.Booster Systems - Hydro MPC, Hydro Multi-E

    opt_FSIP
    Flow max.: 1464 m³/h Head max.: 161 m Liquid temperature: 0..60 °C p max.: 16 bar

1. Vertical multistage pumps - CR/CRE
Vertical, multistage centrifugal pump with suction and discharge ports on the same level.

2. Endsuction close coupled multistage pumps - CM/CME
CM, CME are reliable, quiet and compact horizontal end-suction pumps. The modular pump design makes it easy to make customised solutions.

3. Endsuction close coupled single-stage pumps - NBG/NBGE
Close-coupled pumps according to ISO 2858. Flanges are PN 16 with dimensions according to AS2129 table E. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.

4. Endsuction close coupled single-stage pumps - NB/NBE
End-suction close-coupled pumps according to EN 733. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework.

5. Endsuction close coupled single-stage pumps - MTB/MTBE
Close coupled end-suction pump with semi-open vortex impeller. The pumps are designed specifically for the transfer of liquids containing solid particles in industrial machine tool applications.

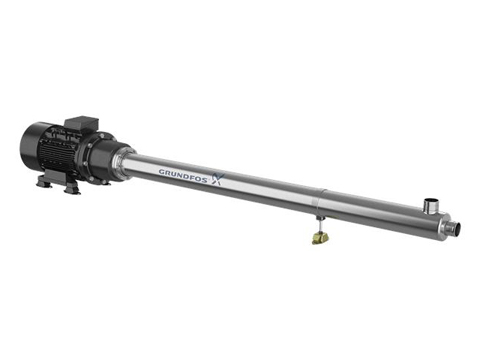

6. Horizontal multistage pumps - BMS
The Grundfos BMS range consists of hp (high pressure) and hs (high speed) versions. BMS hp are suitable for industrial and water supply applications where the inlet pressure is high. BMS hs enables the creation of high pressure.

7. Immersible Pumps - MTR/MTRE
Vertical multistage centrifugal pump designed for tank top mounting and for pumping of cooling lubricants and cutting oils for machine tools, cooling applications, industrial liquid transfer and similar applications.

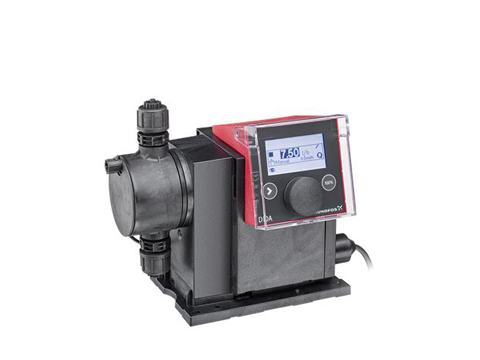

8. Digital Dosing Pumps - SMART Digital S/XL
SMART Digital diaphragm dosing pump with powerful variable-speed stepper motor (S) or powerful PMS (Permanent Magnet Synchronous) motor (XL) and FlowControl system to automatically detect malfunctions. High-end solution for complex and demanding applications with turn-down ratio up to 1:3000.

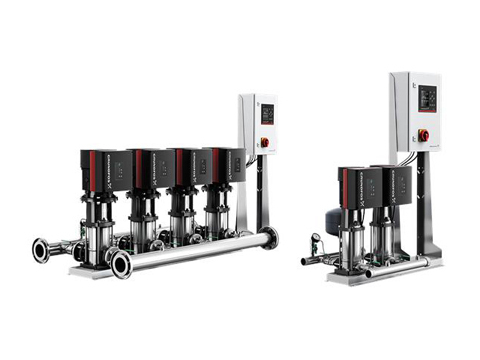

9. Booster Systems - Hydro MPC, Hydro Multi-E
Advanced and energy efficient pressure boosting system for boosting of clean water. Available with 2 - 6 (2 - 4 for Multi-E) parallel connected pumps, integrated advanced controller and all necessary fittings.


  • Inline multi stage pumps_CRE,CRIE

    download
  • Endsuction close coupled multistage_CM

    download
  • Endsuction close-coupled single-stage_NBG,NBGE

    download
  • Endsuction close-coupled single-stage_NB

    download
  • Endsuction machine tool pumps_MTB,MTBE

    download
  • Horizontal multistage pumps_BMS

    download
  • Immersible pumps_MTR

    download

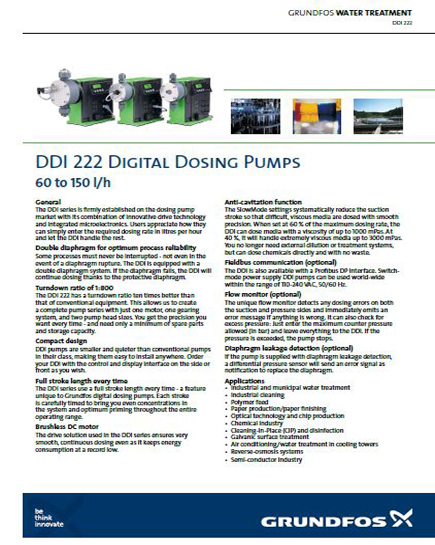

  • Diaphragm pumps_DDI

    download
  • Diaphragm pumps_DDE

    download
  • Diaphragm pumps_DDC

    download
  • Booster pump sets_Hydro Multi-E

    download
