Trough Screw Conveyors for Flour Mills MSC

Designed for flour mills

MSC Trough Screw Conveyors are designed for handling powdery or granular materials in flour mills. Their design, their special finishing grade, and the vast range of options and accessories take the requirements of the flour milling industry into particular consideration.

MSC Trough Screw Conveyors are a specialized version of the CA modular trough screw conveyor system. They are used in the flour milling industry, especially for conveying cereal grains, flour, and by-products such as bran. MSC Screw Conveyors are manufactured from carbon steel with food-grade surface finishing.

They are made up of a U-shape trough equipped with at least one outlet spout, an end plate at each trough end, helicoid screw flighting welded on a centre pipe with coupling bush at each end, two end bearing assemblies complete with shaft seal, a number of intermediate hanger bearings with self-lubricating bushes depending on the overall length of the screw conveyor, as well as bolted trough covers. Furthermore, MSC Trough Screw Conveyors are equipped with a gear motor that suits the application. MSC Trough Screw Conveyors come in a light-duty design only and they are available with ATEX, Zone 22 certification.

Function :

  • MSC Trough Screw Conveyors are designed for handling powdery or granular materials in flour mills.
  • Their design, their special finishing grade, and the vast range of options and accessories take the requirements of the flour milling industry into particular consideration.

Features :

  • Light-duty trough in modular flanged sections manufactured from carbon steel
  • Light-duty helicoid flighting welded on centre pipe manufactured from carbon steel
  • Powder-coated
  • Square or rectangular inlet and outlet spouts with integrated drilled WAM standard flanges
  • Robust cast iron body flanged end bearing assemblies with external bearings and manually adjustable packed gland seals
  • Maintenance-free intermediate cast hanger bearings with self-lubricating slide bushes
  • Splined or bolted shaft couplings
  • Direct drive in a compact version, or with coupling transmission, or with chain or belt transmission
  • Food-grade finishing and surface painting

Benefits :

  • Short delivery time due to modular design and availability of all components
  • Perfectly matching spare parts
  • Industrial quality design

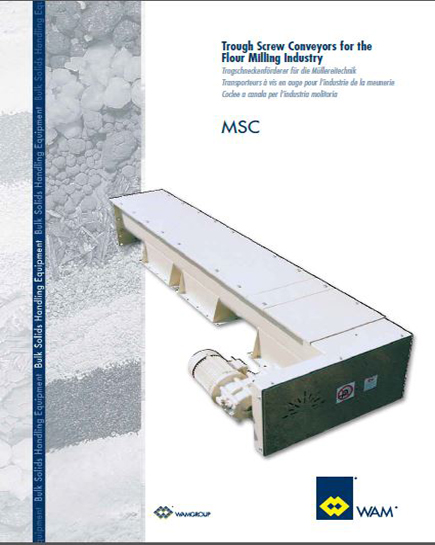

  • Trough Screw Conveyors for Flour Mills MSC

    opt_FSIP


  • Trough Screw Conveyors for Flour Mills MSC

    download

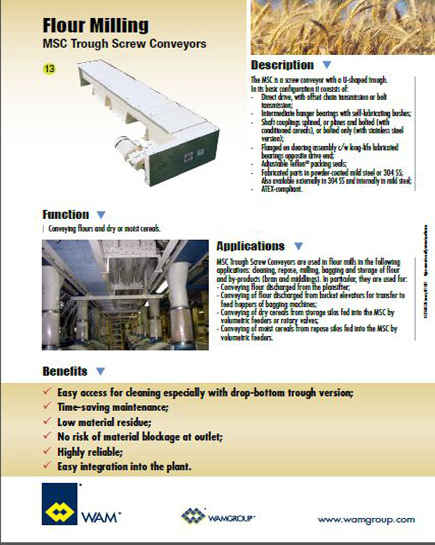

  • DS flour mill
