The best deal for your laboratory

MLH is a highly versatile, efficient yet affordable laboratory mixer. University researchers and R&D staff of test laboratories from virtually all industries both can enjoy the vast possibilities of testing process feasibility.

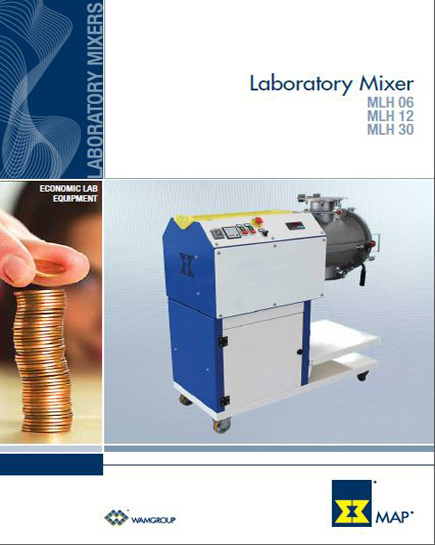

The MLH Laboratory Batch Mixer consists of stand-alone drive unit with incorporated frequency inverter, an easily replaceable horizontal mixing shaft supported at the drive end only, and an easily replaceable, revolving mixing vessel complete with inlet/outlet, as well as an inspection door ensuring free access to all internal parts. Equipped with a variety of mixing tools, the machine produces high quality mixtures which are reproducible over time.

Function :

• MLH Laboratory Batch Mixers operate on the principle of a mechanically generated fluid bed. Consequently, laboratory results can be transferred to production units.
• This ensures product and process development required by today’s industry. Quick change of drum size combined with a rich basic equipment package ensures use for a variety of applications.
• In some cases, to obtain the desired mixing effect, a separately driven high-speed chopper can be installed.
• MLH is a Laboratory Batch Mixer suitable for applications in the pharmaceutical, food, chemical, biochemical, and powder metallurgy industries.
• The MLH is available in three sizes: 6, 12 and 30 litres.

Features :

• Capacity: 1 ~ 23 litres per batch
• Possibility of adding liquids
• Available in 304L / 316L stainless steel
• Motor controlled by frequency inverter (possibility of setting shaft speed from 70 to 270 rpm)

Benefits :

• Highest quality mix in shortest mixing time
• No product deterioration or damage
• All internal parts of the mixing vessel easily accessible
• Easily replaceable horizontal mixing shaft
• Wide range of mixing tools (ploughshare, toothed ploughshare, blade-type, toothed blade, ribbon), available with anti-wear coating on request
• Maximum operating comfort
