31.7 Gallons/Minute

3/4" NPT Fluid Port

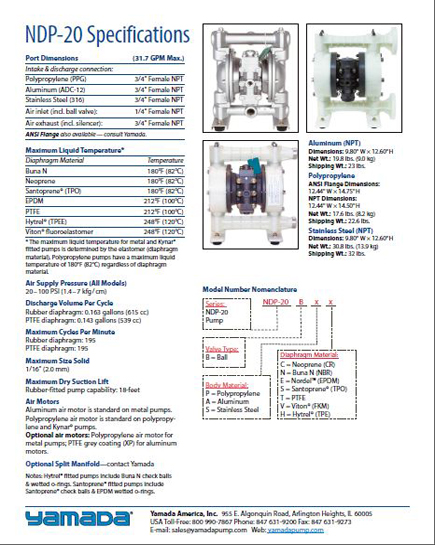

Technical Data

• Air Inlet 1/4" Female NPT (includes ball valve)
• Air Exhaust 3/8" Female NPT (includes silencer)
• Air Supply Pressure : 20 to 100 PSI (1.4 to 7 kgf/cm²)
• Discharge Volume Per Cycle : Rubber diaphragm: 0.163 gallons (615 cc) PTFE diaphragm: 0.143 gallons (539 cc)
• Maximum Cycles Per Minute : Rubber diaphragm: 195 PTFE diaphragm: 195
• Maximum Size Solid : 1/16" (2.0 mm)
• Maximum Dry Suction Lift : Rubber-fitted pump capability: 18-feet
• Air Motor : Aluminum
• Optional Coating : PTFE-coated
• Other Options : Split manifold pumps

Dimension

• Dimensions: 9.65" W x 12.42" H
• Net Weight: 30.9 lbs. (14.0 kg)
• Shipping Weight: 34.9 lbs.
